The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, with a low ESR (Equivalent Series Resistance) and a high ripple current rating. Additionally, the output capacitor should be placed as close to the output pin as possible.
Although the datasheet specifies a maximum input voltage of 5.5V, it is recommended to limit the input voltage to 5V to ensure reliable operation and to prevent damage to the internal components.
The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
The recommended input capacitor value is 1uF to 10uF, with a low ESR and a high ripple current rating. A ceramic capacitor or a film capacitor is recommended due to their low ESR and high reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP63201QWU-7 Overview

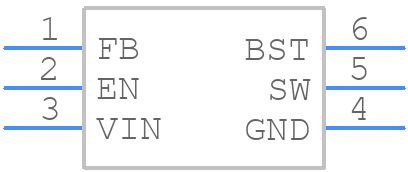

Use the download button to access the AP63201QWU-7 schematic symbol, PCB footprint, and 3D model.
