A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure the device is properly powered up and configured, follow the recommended power-up sequence, and make sure the input voltage is within the specified range. Also, ensure that the EN pin is properly configured and the output voltage is set correctly.
To prevent damage, handle the device by the body or the pins, avoid touching the die, and use an anti-static wrist strap or mat to prevent electrostatic discharge. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature below 260°C.
To troubleshoot issues, check the input voltage, output voltage, and current draw. Verify that the device is properly configured and that the PCB layout is correct. Use a thermal camera or thermometer to check for overheating, and check for any signs of physical damage or wear.
Yes, to minimize EMI/EMC issues, use a shielded inductor, keep the input and output capacitors close to the device, and use a common-mode choke if necessary. Also, ensure that the PCB layout is designed to minimize radiation and conduction of electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP63356DV-7 Overview

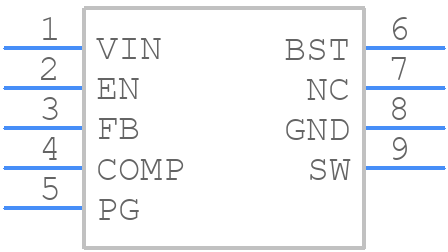

Use the download button to access the AP63356DV-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP633,
or try a keyword search, such as Switching Regulator or Controllers
