PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
3.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
40 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.63 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm
AP64200QSP-13 Frequently Asked Questions (FAQs)
A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with multiple vias connecting to the thermal pad of the AP64200QSP-13. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output with suitable capacitors, and provide a stable input voltage source.
The AP64200QSP-13 is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device's power dissipation and junction temperature to ensure reliable operation over the desired temperature range.
While the AP64200QSP-13 is a high-quality device, it's essential to check the specific requirements of your application. Diodes Incorporated offers other devices with enhanced reliability and automotive-grade qualifications, such as the AP64200QSP-13-AQ or AP64200QSP-13-HR, which may be more suitable for these applications.
To protect the AP64200QSP-13 from overvoltage and overcurrent conditions, consider adding external protection components such as TVS diodes, zener diodes, or fuses. Additionally, ensure that the input voltage and current are within the recommended operating ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64200QSP-13 Overview

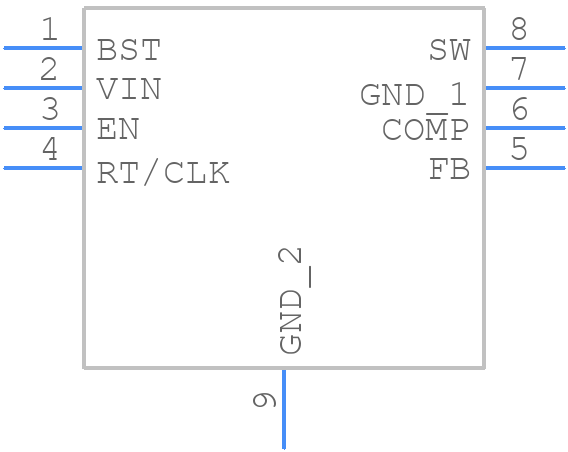

Use the download button to access the AP64200QSP-13 schematic symbol, PCB footprint, and 3D model.
