A good PCB layout for optimal thermal performance would involve placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a 2-3 layer PCB with a thermal relief pattern on the top layer.
To ensure proper biasing, make sure to follow the recommended operating conditions in the datasheet, including the input voltage range, output voltage range, and quiescent current. Additionally, ensure that the input and output capacitors are properly selected and placed close to the IC.
Potential EMI/EMC issues with the AP64202QSP-13 include radiated emissions from the switching frequency and conducted emissions through the input/output lines. To mitigate these issues, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and adding EMI filters or ferrite beads on the input/output lines.
The AP64202QSP-13 is rated for operation up to 125°C, but the device's performance and reliability may degrade at higher temperatures. Be sure to follow the recommended operating conditions and derate the device's performance accordingly. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to reduce the device's junction temperature.
To troubleshoot issues with the AP64202QSP-13, start by verifying the input voltage, output voltage, and quiescent current are within the recommended operating conditions. Check for proper PCB layout, component selection, and thermal management. Use oscilloscopes or other measurement tools to analyze the device's behavior and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64202QSP-13 Overview

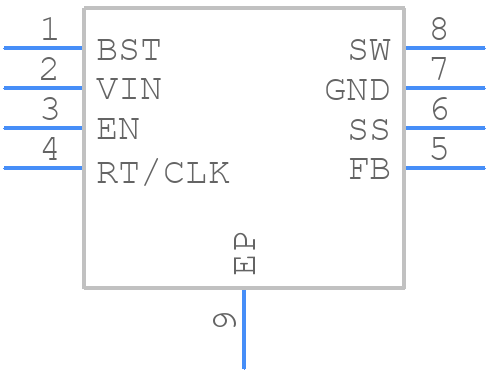

Use the download button to access the AP64202QSP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP642,
or try a keyword search, such as Switching Regulator or Controllers
