A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
To ensure stability and reliability, it's essential to follow the recommended operating conditions, decoupling, and layout guidelines. Additionally, ensure that the input voltage is within the specified range, and the output is properly filtered and decoupled. It's also recommended to add input and output capacitors as close to the IC as possible.
The AP64202SP-13 is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device's power dissipation accordingly based on the ambient temperature to ensure reliable operation.
Yes, the AP64202SP-13 is designed to withstand moderate vibration environments. However, it's recommended to follow proper PCB mounting and screwing techniques to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to further reduce the impact of vibrations.
To troubleshoot issues with the AP64202SP-13, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly decoupled and filtered. Use an oscilloscope to check for any unusual voltage or current waveforms. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64202SP-13 Overview

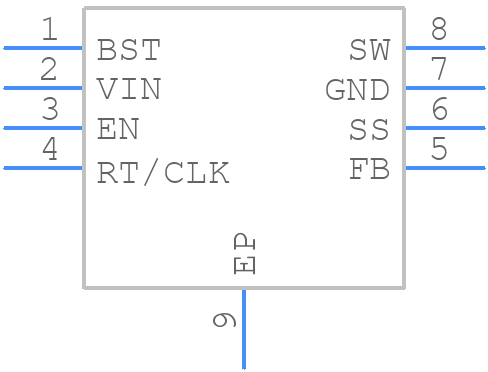

Use the download button to access the AP64202SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP642,
or try a keyword search, such as Switching Regulator or Controllers
