A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to further improve thermal performance.
To ensure proper power-up and configuration, follow the recommended power-up sequence: 1) Apply VIN, 2) Apply VEN, and 3) Apply input voltage to the output stage. Also, make sure to configure the device according to the datasheet's recommended settings for the desired output voltage and current limit.
For EMI and EMC compliance, consider the following: 1) Use a shielded inductor, 2) Keep the switching node (SW) as short as possible, 3) Use a common-mode choke on the input, 4) Add a ferrite bead on the output, and 5) Ensure good PCB layout practices, such as separating analog and digital grounds.
To troubleshoot issues, follow a systematic approach: 1) Verify the input voltage and current, 2) Check the output voltage and current, 3) Verify the device's thermal performance, 4) Check for any signs of physical damage or contamination, and 5) Consult the datasheet and application notes for guidance on specific troubleshooting steps.
Operating the device outside of the recommended operating conditions can lead to reduced performance, decreased efficiency, and potentially even damage to the device. It's essential to ensure the device operates within the specified voltage, current, and temperature ranges to maintain reliability and performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64350QSP-13 Overview

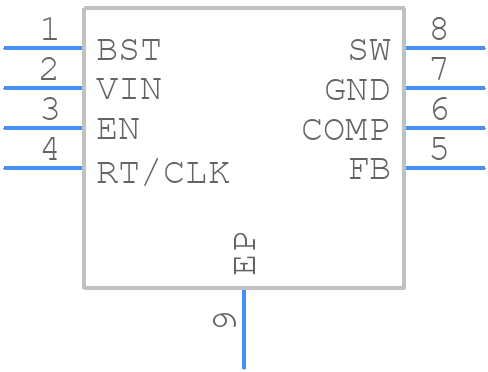

Use the download button to access the AP64350QSP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP643,
or try a keyword search, such as Switching Regulator or Controllers
