PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
3.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3.5 A
Output Voltage-Max:
40 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.63 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
640 kHz
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm
AP64351QSP-13 Frequently Asked Questions (FAQs)
A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure the device is properly biased, make sure to follow the recommended operating conditions and biasing schemes outlined in the datasheet. This typically includes setting the input voltage, output voltage, and bias resistors correctly.
Operating the device beyond the recommended operating conditions can lead to reduced performance, decreased lifespan, and potentially even device failure. It's essential to adhere to the recommended operating conditions to ensure optimal performance and reliability.
To troubleshoot issues with the device, start by verifying the input voltage, output voltage, and biasing conditions. Check for any signs of overheating, and ensure the device is properly mounted and connected. If issues persist, consult the datasheet and application notes for guidance or contact Diodes Incorporated support.
Yes, when designing with the AP64351QSP-13, it's essential to consider EMI/EMC guidelines to minimize electromagnetic interference. This includes using proper shielding, filtering, and grounding techniques, as well as following recommended layout and component placement guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64351QSP-13 Overview

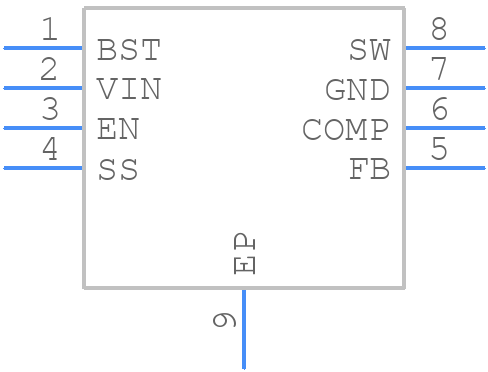

Use the download button to access the AP64351QSP-13 schematic symbol, PCB footprint, and 3D model.
