A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source and decouple the input with a capacitor to minimize noise and ripple.
Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
To troubleshoot issues, start by checking the PCB layout and thermal design. Verify that the device is properly biased and that the input voltage and current are within the recommended ratings. Use a thermal camera or thermometer to check for hotspots, and use a logic analyzer or oscilloscope to debug the device's operation.
The input capacitor should be a low-ESR ceramic capacitor with a voltage rating that meets or exceeds the maximum input voltage. A 10uF to 22uF capacitor with an X5R or X7R dielectric is a good starting point. The capacitor should be placed as close to the device as possible to minimize noise and ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64351SP-13 Overview

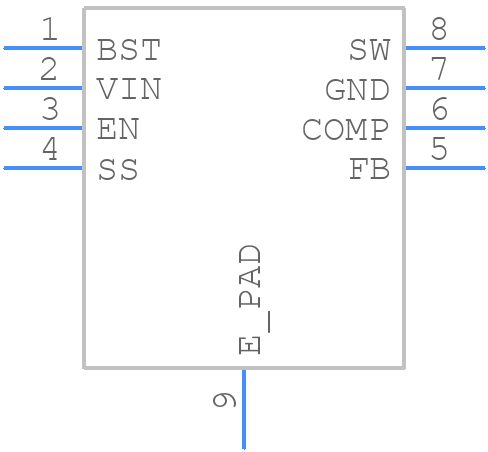

Use the download button to access the AP64351SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP643,
or try a keyword search, such as Switching Regulator or Controllers
