A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to further improve thermal performance.
To ensure proper power-up and configuration, follow the recommended power-up sequence: 1) Apply input voltage (VIN) to the device, 2) Wait for the internal voltage regulator to stabilize (typically <10ms), and 3) Apply the enable signal (EN) to turn on the device. Also, ensure that the input voltage is within the recommended operating range (4.5V to 18V) and that the input capacitor is properly sized to filter out noise.
To ensure EMI and EMC compliance, consider the following: 1) Use a shielded enclosure to minimize radiated emissions, 2) Implement a good grounding strategy, 3) Use a common-mode choke or ferrite bead to filter out high-frequency noise, 4) Ensure proper decoupling of the input and output capacitors, and 5) Follow the recommended PCB layout guidelines to minimize radiation and susceptibility.
To troubleshoot issues, start by verifying the input voltage and current, and checking for any signs of overheating. Use an oscilloscope to monitor the output voltage and current waveforms. Check for any signs of oscillation or instability. If issues persist, consult the datasheet and application notes for guidance, or contact Diodes Incorporated's technical support team for further assistance.
To ensure proper thermal management, consider the following: 1) Use a heat sink with a thermal interface material (TIM) to improve heat transfer, 2) Ensure good airflow around the device, 3) Use a thermal relief pattern on the PCB to dissipate heat, and 4) Monitor the device's junction temperature (TJ) to prevent overheating. The maximum recommended TJ is 150°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP64352SP-13 Overview

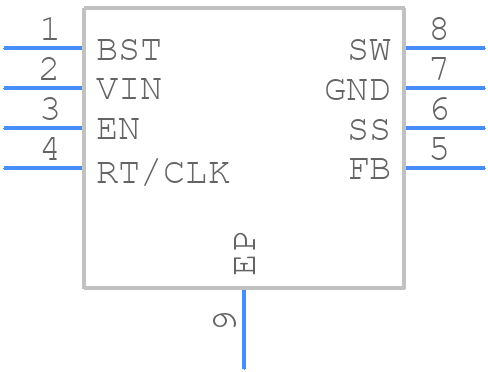

Use the download button to access the AP64352SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP643,
or try a keyword search, such as Switching Regulator or Controllers
