Diodes Incorporated recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a bypass capacitor to filter out noise and ripple.
To ensure the AP65452SP-13 operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure to stay within the recommended operating conditions, and consider implementing over-voltage, over-current, and over-temperature protection circuits.
The typical efficiency of the AP65452SP-13 is around 95%. To optimize efficiency, ensure proper PCB layout, use a low-ESR output capacitor, and minimize the input voltage ripple. Additionally, consider using a synchronous rectifier or a low-RDS(ON) MOSFET to reduce losses.
The AP65452SP-13 has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow, use a heat sink if necessary, and consider using thermal interface materials to improve heat transfer. Monitor the junction temperature and implement thermal shutdown or warning circuits if necessary.
To minimize EMI and EMC emissions, use a shielded enclosure, keep the input and output cables as short as possible, and use EMI filters or common mode chokes. Additionally, consider using a spread spectrum oscillator or frequency hopping to reduce emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP65452SP-13 Overview

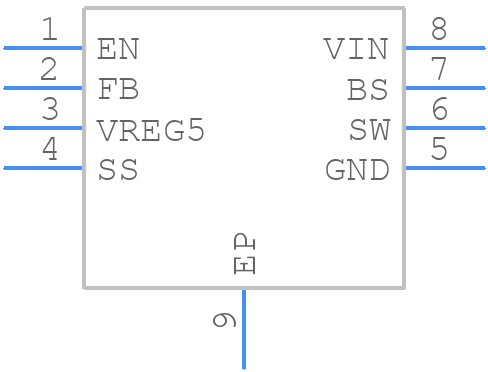

Use the download button to access the AP65452SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP654,
or try a keyword search, such as Switching Regulator or Controllers
