A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, it's essential to decouple the input and output pins with suitable capacitors to minimize noise and ensure stable operation.
When designing a power supply using the AP65552SP-13, critical components to consider include the input and output capacitors, inductors, and resistors. These components should be selected based on the specific application requirements, such as voltage, current, and frequency.
To troubleshoot common issues with the AP65552SP-13, start by checking the PCB layout and thermal design to ensure proper heat dissipation. Verify that the input and output voltages are within the recommended specifications, and check for any signs of oscillation or instability. If issues persist, consult the datasheet and application notes for guidance.
Yes, when using the AP65552SP-13, it's essential to consider EMI/EMC guidelines to ensure compliance with regulatory standards. This includes using proper shielding, filtering, and grounding techniques to minimize electromagnetic interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP65552SP-13 Overview

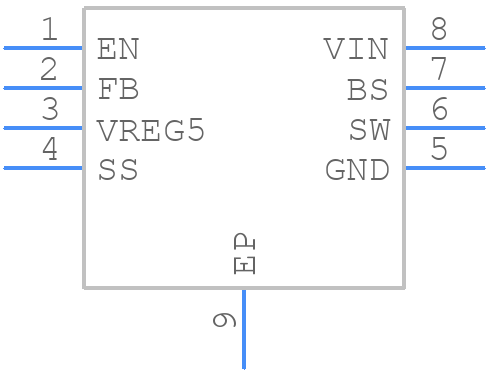

Use the download button to access the AP65552SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP655,
or try a keyword search, such as Switching Regulator or Controllers
