The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using multiple vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The AP66300FVBW-13 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. A human body model (HBM) of 2kV and a machine model (MM) of 200V are recommended for ESD protection.
Yes, the AP66300FVBW-13 is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade semiconductor devices. However, it's essential to follow the recommended operating conditions and ensure that the device is properly qualified for the specific application.
The recommended soldering conditions for the AP66300FVBW-13 are a peak temperature of 260°C, a soldering time of 10 seconds, and a temperature ramp rate of 3°C/s. It's essential to follow these conditions to avoid damaging the device during the soldering process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP66300FVBW-13 Overview

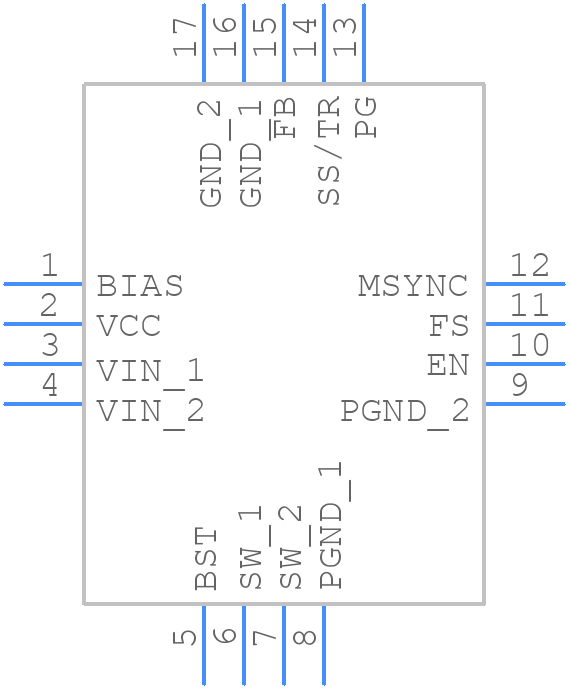

Use the download button to access the AP66300FVBW-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP663,
or try a keyword search, such as Switching Regulator or Controllers
