Description:• Wide input voltage range: 2.2V – 5.5V
• 230mV very low dropout at 500mA load
• 500mV very low dropout at 1A load
• 3% total accuracy over line, load and temperature
• Very low quiescent current (IQ): 125µA typical
• Adjustable output voltage range: 0.8V to 5.0V
• Very fast transient response
• High PSRR
• Accurate voltage regulation
• Current limiting and short circuit protection
• Thermal shutdown protection
• Stable with any type output capacitor ≥ 4.7µF
• Ambient temperature range -40ºC to
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure proper power-up and configuration, follow the recommended power-up sequence, and make sure the input voltage is within the specified range. Also, ensure that the EN pin is properly biased to enable the device.
Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, to minimize EMI/EMC issues, use a good PCB layout with proper grounding, decoupling, and shielding. Ensure that the device is placed away from noise sources, and use filters or chokes to reduce noise coupling. Follow the recommended layout and design guidelines in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7167-SPG-13 Overview

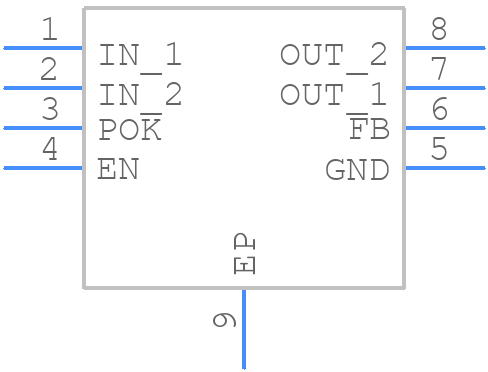

Use the download button to access the AP7167-SPG-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP716,
or try a keyword search, such as Linear Regulator ICs
