Part Image

AP7173-FNG-7 - Diodes Incorporated

Description: Diodes Inc AP7173-FNG-7, Dual Linear Voltage Regulator, 1.5A Adjustable 0.8 → 3.3 V, ±2%, 10-Pin DFN-3030

Download AP7173-FNG-7 Model

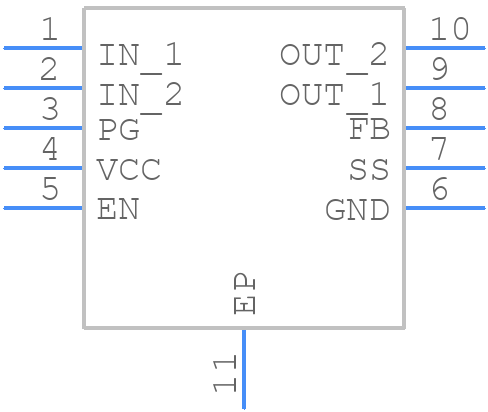

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP7173-FNG-7 - Diodes Incorporated PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN3030-10_2020
click to zoom
3D Models
AP7173-FNG-7 - Diodes Incorporated  - 3D model - Small Outline No-lead - DFN3030-10_2020
click to zoom

AP7173-FNG-7 Details

  • Manufacturer Part Number:

    AP7173-FNG-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    3 X 3 MM, GREEN, DFN-10

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.27 V

  • Dropout Voltage1-Nom:

    1.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    3.3 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AP7173-FNG-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum ESR (Equivalent Series Resistance) of 10mΩ for the output capacitor is recommended to prevent oscillations.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • While the AP7173-FNG-7 is rated for operation up to 125°C, it's essential to consider the thermal derating curve and ensure that the device does not exceed the maximum junction temperature (Tj) of 150°C.
  • The output voltage ripple and noise can be calculated using the formula: ΔVout = (Iout * Rl) / (fsw * Cout), where Iout is the output current, Rl is the inductor resistance, fsw is the switching frequency, and Cout is the output capacitance.
