A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stability in the output voltage, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR value to minimize voltage ripple.
Although the datasheet specifies a maximum input voltage of 26V, it's recommended to limit the input voltage to 24V to ensure reliable operation and to prevent damage to the device.
While the AP7176BFN-7 is rated for operation up to 125°C, it's essential to consider the thermal derating curves in the datasheet to ensure reliable operation in high-temperature environments. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
To troubleshoot issues with the AP7176BFN-7, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended values in the datasheet. Use an oscilloscope to measure the output voltage ripple and noise. If the issue persists, consider consulting the application notes or contacting Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7176BFN-7 Overview

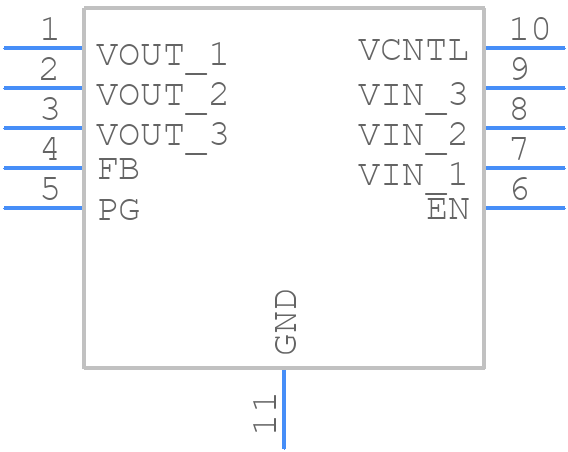

Use the download button to access the AP7176BFN-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP717,
or try a keyword search, such as Linear Regulator ICs
