AP72200CT20-7 - Diodes Incorporated

Description: Switching Voltage Regulators DCDC Conv LV Buck/ Boost

Download AP72200CT20-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

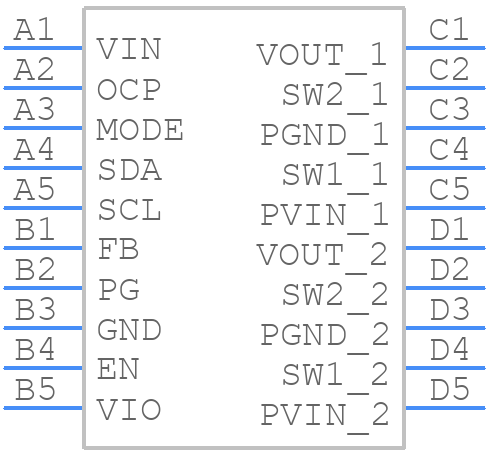

Symbol
AP72200CT20-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP72200CT20-7 - Diodes Incorporated PCB footprint - BGA - BGA - AP72200CT20-7/d
click to zoom
3D Models
AP72200CT20-7 - Diodes Incorporated - 3D model - BGA - AP72200CT20-7/d
click to zoom

AP72200CT20-7 Details

  • Manufacturer Part Number:

    AP72200CT20-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Additional Feature:

    PFM CONTROL MODE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e4

  • Length:

    2.125 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.14 V

  • Output Voltage-Min:

    2.6 V

  • Output Voltage-Nom:

    3.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2900 kHz

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.75 mm

AP72200CT20-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source and decoupling capacitors to minimize noise and ripple.
  • Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially even device failure. It's essential to ensure proper thermal management and stay within the recommended operating temperature range.
  • While the AP72200CT20-7 is a high-quality device, it's essential to check the specific requirements for your application. Diodes Incorporated may offer other devices or variants that are specifically designed for high-reliability or automotive applications. Consult with their sales team or application engineers for guidance.
  • The AP72200CT20-7 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. For latch-up prevention, ensure that the device is properly biased and that the input signals are within the recommended voltage ranges.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AP72200CT20-7 Overview

Use the download button to access the AP72200CT20-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP722, or try a keyword search, such as Switching Regulator or Controllers
