AP7361EA-SPR-13 footprint, schematic symbol and 3D model by Diodes Incorporated

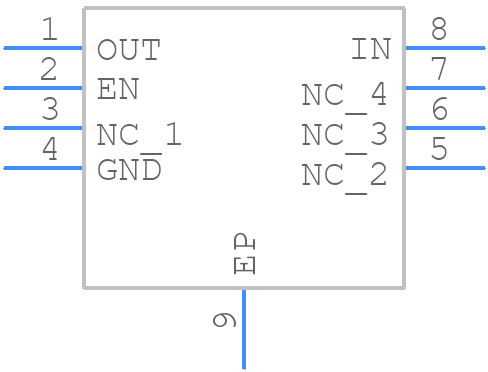

Symbol

click to zoom

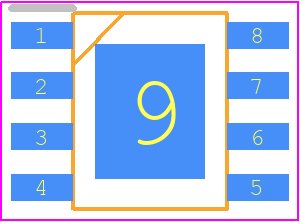

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP7361EA-SPR-13
Part Number AP7361EA-SPR-13
Manufacturer Diodes Incorporated
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SO-8(EP)_2
Released Date Sep 26, 2024
Last Modified Date Sep 26, 2024 3:41 AM UTC
Pinout / Pin List Click Here (Member Only)

AP7361EA-SPR-13 Details

Manufacturer Part Number:
AP7361EA-SPR-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SO-8EPR, 8-PIN
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
20 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Adjustability:
ADJUSTABLE
Dropout Voltage1-Nom:
0.84 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Line Regulation-Max (%/V):
0.2
Load Regulation-Max:
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
1 A
Output Voltage1-Max:
5 V
Output Voltage1-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOP
Package Equivalence Code:
SOP8,.24
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Packing Method:
TR, 13 INCH
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
1.63 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm

AP7361EA-SPR-13 Frequently Asked Questions (FAQs)

A recommended PCB layout for optimal thermal performance would be to have a solid copper plane on the bottom layer of the PCB, connected to the thermal pad of the AP7361EA-SPR-13. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and to avoid any thermal vias or holes under the device.
To ensure the stability of the output voltage, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a suitable voltage rating. A minimum output capacitance of 10uF is recommended.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
The AP7361EA-SPR-13 is rated for operation up to 125°C. However, it's essential to consider the derating of the device's performance and reliability at high temperatures. It's recommended to consult the datasheet and to perform thorough thermal analysis and testing to ensure the device operates within its specifications.
The power dissipation of the AP7361EA-SPR-13 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. It's essential to consider the maximum power dissipation rating of the device (2.5W) and to ensure proper thermal management.
