AP7362-HA-7 - Diodes Incorporated

Description: LDO Voltage Regulators 1.5A Adj Vout Linear Regulator

Download AP7362-HA-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

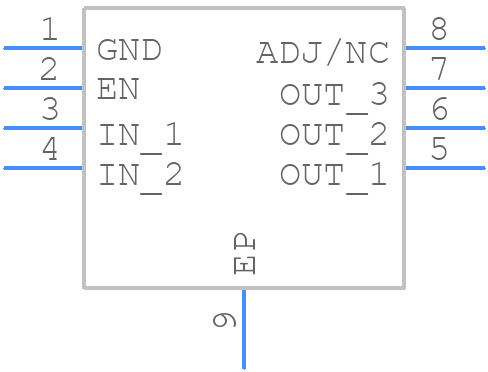

Symbol
AP7362-HA-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP7362-HA-7 - Diodes Incorporated PCB footprint - Small Outline No-lead - Small Outline No-lead - U-DFN2030-8
click to zoom
3D Models
AP7362-HA-7 - Diodes Incorporated - 3D model - Small Outline No-lead - U-DFN2030-8
click to zoom

AP7362-HA-7 Details

  • Manufacturer Part Number:

    AP7362-HA-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    2 X 3 MM, ROHS COMPLIANT, UDFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.28 V

  • Dropout Voltage1-Nom:

    0.19 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.63 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AP7362-HA-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AP7362-HA-7 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a solid ground plane to dissipate heat efficiently. Avoid routing high-current traces near the device to minimize thermal resistance.
  • To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Additionally, minimize the distance between the output capacitor and the AP7362-HA-7 to reduce parasitic inductance.
  • The AP7362-HA-7 can tolerate a maximum input ripple voltage of 1Vp-p. Exceeding this limit may affect the device's performance and stability. Ensure that the input voltage is well-regulated and filtered to minimize ripple.
  • The AP7362-HA-7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's output current at high temperatures to ensure reliable operation.
  • To protect the AP7362-HA-7 from input voltage surges, consider adding a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help absorb or clamp voltage spikes, ensuring the device's input voltage remains within the recommended range.
