A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure proper biasing, make sure to follow the recommended operating conditions in the datasheet, including the input voltage range, output voltage range, and output current. Also, ensure that the input and output capacitors are properly selected and placed close to the device.
For EMI filtering and noise reduction, consider adding input and output filters, such as LC filters or RC filters, to reduce electromagnetic interference and noise. Additionally, ensure that the device is placed away from noise sources and that the PCB layout is designed to minimize noise coupling.
The AP7362A-33SP-13 has built-in overcurrent protection. To handle overcurrent conditions, monitor the device's current sense pin and implement a fault detection mechanism, such as a comparator or a microcontroller, to detect and respond to overcurrent events.
For high-power applications, ensure that the device is mounted on a heat sink or a thermally conductive substrate to dissipate heat efficiently. Also, consider using thermal interface materials and ensure good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7362A-33SP-13 Overview

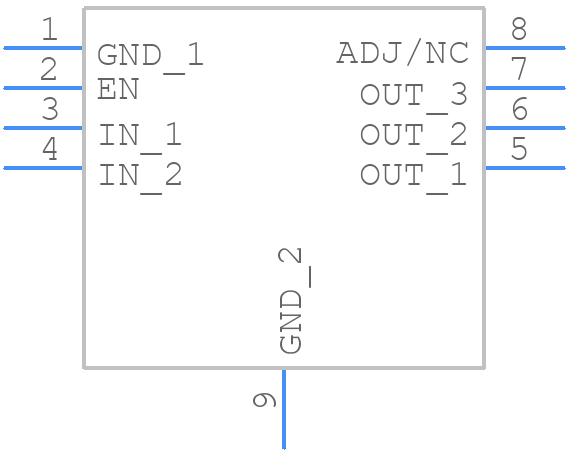

Use the download button to access the AP7362A-33SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP736,
or try a keyword search, such as Linear Regulator ICs
