A good PCB layout for the AP7363-10D-13 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and ensures reliable operation.
To ensure stable output voltage regulation, make sure to decouple the input and output with suitable capacitors, and use a stable input voltage source. Additionally, ensure the output capacitor is within the recommended range (10uF to 22uF) and has a low ESR.
The AP7363-10D-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure a longer lifespan.
While the AP7363-10D-13 is a high-quality device, it's essential to check the specific requirements of your application. For high-reliability or automotive applications, you may need to consider devices with specific certifications (e.g., AEC-Q100) or additional testing and validation.
To protect the AP7363-10D-13 from input voltage surges or transients, consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. This helps to absorb or clamp voltage spikes, ensuring the device operates within its specified voltage range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7363-10D-13 Overview

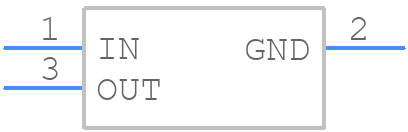

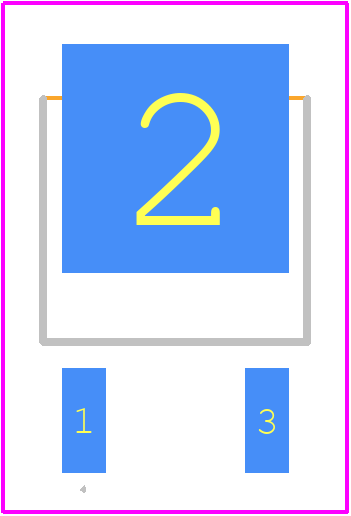

Use the download button to access the AP7363-10D-13 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AP736,
or try a keyword search, such as Linear Regulator ICs
