AP7363-15D-13 footprint, schematic symbol and 3D model by Diodes Incorporated

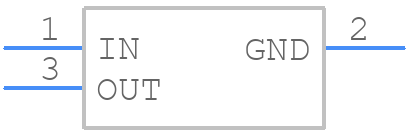

Symbol

click to zoom

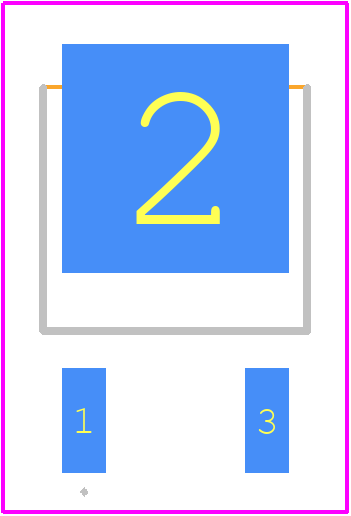

PCB Footprints

AP7363-15D-13 - Diodes Incorporated PCB footprint - Other - Other - AP7363-15D-13-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP7363-15D-13
Part Number AP7363-15D-13
Manufacturer Diodes Incorporated
Pin Count 3
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - AP7363-15D-13-3
Released Date Apr 9, 2022
Last Modified Date Jun 25, 2024 8:06 AM UTC
Pinout / Pin List Click Here (Member Only)

AP7363-15D-13 Details

Manufacturer Part Number:
AP7363-15D-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TO-252, 3/2 PIN
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
24 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
7
Adjustability:
FIXED
Dropout Voltage1-Max:
0.28 V
Dropout Voltage1-Nom:
0.19 V
Input Voltage Absolute-Max:
6 V
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.2 V
JESD-30 Code:
R-PSSO-G2
JESD-609 Code:
e3
Length:
6.58 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
2
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
1.5 A
Output Voltage1-Nom:
1.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TO-252
Package Equivalence Code:
SMSIP2/3H,.38,90TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR, 13 INCH
Peak Reflow Temperature (Cel):
260
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
2.52 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
2.286 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm

AP7363-15D-13 Frequently Asked Questions (FAQs)

For optimal thermal performance, it is recommended to have a solid ground plane on the bottom layer of the PCB, and to use thermal vias to connect the ground plane to the thermal pad of the AP7363-15D-13. Additionally, keep the PCB traces as short and wide as possible to reduce thermal resistance.
To ensure stable operation, the AP7363-15D-13 requires a proper bias voltage on the EN pin. A voltage divider or a dedicated bias voltage source can be used to set the EN pin to the recommended voltage range of 1.4V to 2.5V. Additionally, ensure that the input voltage is within the recommended range of 2.7V to 5.5V.
The AP7363-15D-13 can drive a maximum capacitive load of 10uF. Exceeding this limit may cause instability or oscillation in the output voltage. If a larger capacitive load is required, consider adding a series resistor or an inductor to limit the inrush current.
The output voltage ripple of the AP7363-15D-13 can be calculated using the following formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. A lower output voltage ripple can be achieved by using a larger output capacitor or a capacitor with lower ESL.
Yes, the AP7363-15D-13 is compatible with lead-free soldering processes. The device is manufactured using a lead-free process and is RoHS compliant. However, it is recommended to follow the recommended soldering profile and temperature range to ensure reliable operation.
