A good PCB layout for optimal thermal performance involves placing the AP7365-33ERG-13 near a thermal pad or a heat sink, ensuring good thermal conductivity. The datasheet recommends a minimum of 2oz copper thickness and a thermal relief pattern to reduce thermal resistance.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, ensure that the input voltage is within the specified range, and the output current is within the maximum rating.
Although not explicitly stated in the datasheet, a general rule of thumb is to keep the input voltage ripple below 10% of the nominal input voltage. For the AP7365-33ERG-13, this would translate to a maximum input voltage ripple of around 1.5V (10% of 15V).
The AP7365-33ERG-13 has a maximum operating junction temperature of 125°C. While it can operate in high-temperature environments, it's essential to ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range.
To calculate the power dissipation of the AP7365-33ERG-13, use the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the maximum rating specified in the datasheet.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7365-33ERG-13 Overview

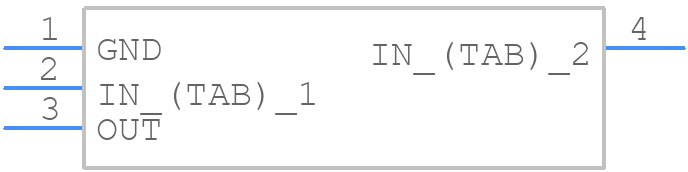

Use the download button to access the AP7365-33ERG-13 schematic symbol, PCB footprint, and 3D model.
