For optimal thermal performance, it is recommended to have a solid ground plane on the bottom layer of the PCB, and to use thermal vias to connect the ground plane to the thermal pad of the AP7370-33FDC-7. Additionally, keep the PCB layout as symmetrical as possible to minimize thermal gradients.
To ensure stable output voltage regulation, make sure to follow the recommended input and output capacitor values and types, and to provide a stable input voltage source. Additionally, ensure that the output voltage is within the specified range, and that the output current is within the maximum rating.
The maximum junction temperature that the AP7370-33FDC-7 can withstand is 150°C. However, it is recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the AP7370-33FDC-7 is rated for operation up to 125°C ambient temperature. However, it is recommended to derate the output current and to ensure proper heat sinking to prevent overheating.
To troubleshoot output voltage instability or oscillation, check the input voltage source for stability, ensure that the output capacitor is of the recommended type and value, and verify that the PCB layout is symmetrical and well-decoupled. Additionally, check for any signs of overheating or excessive current draw.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7370-33FDC-7 Overview

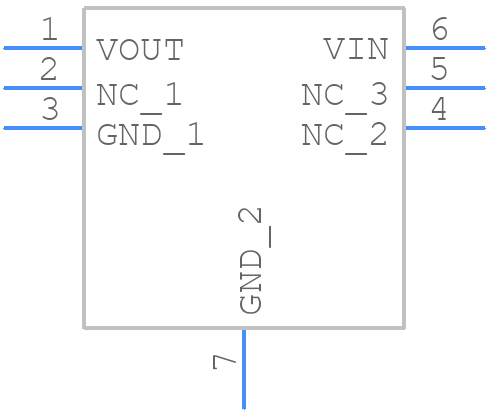

Use the download button to access the AP7370-33FDC-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP737,
or try a keyword search, such as Linear Regulator ICs
