For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the IC. The thermal pad should be connected to the ground plane using multiple vias to reduce thermal resistance.
To ensure stable output voltage regulation, it is recommended to use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Additionally, the input capacitor should be placed close to the IC and have a low ESR value.
Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the internal components.
The AP7375Q-33SP-13 is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage to ensure reliable operation at high temperatures. Additionally, the PCB layout and thermal design should be optimized to minimize thermal resistance and ensure proper heat dissipation.
To troubleshoot output voltage instability or oscillation issues, check the PCB layout for any signs of noise coupling or resonance. Ensure that the input and output capacitors are properly selected and placed. Also, verify that the feedback loop is properly connected and that the compensation components are correctly selected.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7375Q-33SP-13 Overview

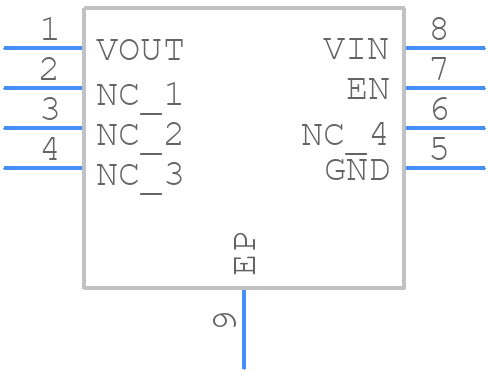

Use the download button to access the AP7375Q-33SP-13 schematic symbol, PCB footprint, and 3D model.
