A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the IC to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to place them close to the IC. Additionally, a minimum of 1uF ceramic capacitor should be used at the output, and the input capacitor should be at least 10uF.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device for reliable operation above 85°C. For ambient temperatures above 85°C, the device's power dissipation should be reduced to prevent overheating.
Yes, the AP7375Q-50SP-13 is suitable for high-vibration environments. However, it's essential to ensure that the PCB is properly secured and that the IC is soldered correctly to prevent mechanical stress.
To protect the regulator from input voltage surges, it's recommended to add a TVS (Transient Voltage Suppressor) diode at the input, and to use a fuse or a PTC (Positive Temperature Coefficient) thermistor to limit the input current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7375Q-50SP-13 Overview

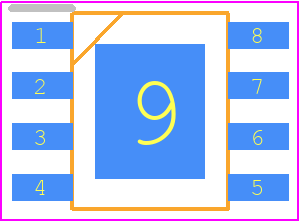

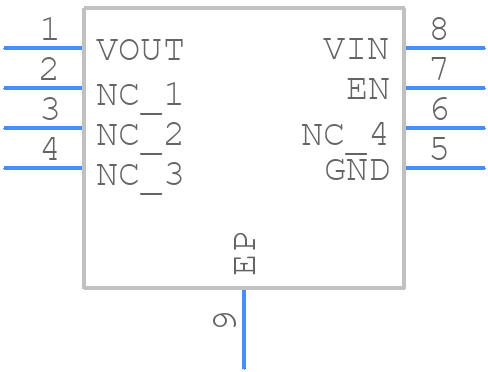

Use the download button to access the AP7375Q-50SP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP737,
or try a keyword search, such as Linear Regulator ICs
