A good PCB layout for the AP7380-50Y-13 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat efficiently. Avoid routing high-current traces near the device to minimize thermal resistance.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Additionally, minimize the distance between the output capacitor and the device to reduce parasitic inductance.
The AP7380-50Y-13 is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to derate the device's power dissipation to ensure a maximum junction temperature of 150°C or less.
While the AP7380-50Y-13 is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. Consult with Diodes Incorporated or a qualified engineer to determine the suitability of this device for your specific application.
The AP7380-50Y-13 has built-in overcurrent protection, but it's still essential to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or short-circuit conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7380-50Y-13 Overview

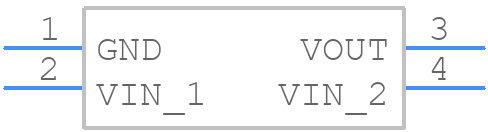

Use the download button to access the AP7380-50Y-13 schematic symbol, PCB footprint, and 3D model.
