AP7381-28SA-7 footprint, schematic symbol and 3D model by Diodes Incorporated

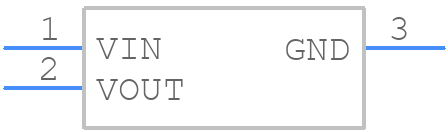

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP7381-28SA-7
Part Number AP7381-28SA-7
Manufacturer Diodes Incorporated
Pin Count 3
Part Category Integrated Circuit
Package Category SOT23 (3-Pin)
Footprint Name SOT23 (3-Pin) - SOT-23 height 1.05-1
Released Date Apr 14, 2023
Last Modified Date Apr 14, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

AP7381-28SA-7 Details

Manufacturer Part Number:
AP7381-28SA-7
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Diodes Incorporated
YTEOL:
0
Adjustability:
FIXED
Dropout Voltage1-Nom:
1 V
Input Voltage Absolute-Max:
45 V
Input Voltage-Max:
40 V
Input Voltage-Min:
3.3 V
JESD-30 Code:
R-PDSO-G3
JESD-609 Code:
e3
Length:
2.9 mm
Load Regulation-Max(%):
0.014%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
3
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.15 A
Output Voltage1-Max:
2.856 V
Output Voltage1-Min:
2.744 V
Output Voltage1-Nom:
2.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSSOP
Package Equivalence Code:
TO-236
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.7 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.96 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
1.3 mm
