AP7381-50Y-13 footprint, schematic symbol and 3D model by Diodes Incorporated

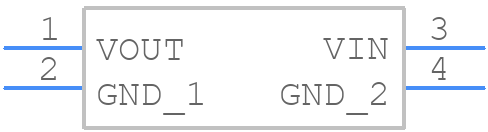

Symbol

click to zoom

PCB Footprints

AP7381-50Y-13 - Diodes Incorporated PCB footprint - Other - Other - SOT89_1

click to zoom

3D Models

AP7381-50Y-13 - Diodes Incorporated - 3D model - Other - SOT89_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP7381-50Y-13
Part Number AP7381-50Y-13
Manufacturer Diodes Incorporated
Pin Count 4
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT89_1
Released Date Jun 27, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AP7381-50Y-13 Details

Manufacturer Part Number:
AP7381-50Y-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Adjustability:
FIXED
Dropout Voltage1-Nom:
1 V
Input Voltage Absolute-Max:
45 V
Input Voltage-Max:
40 V
Input Voltage-Min:
7 V
JESD-30 Code:
R-XSSO-F3
JESD-609 Code:
e3
Length:
4.5 mm
Load Regulation-Max(%):
0.025%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
3
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.15 A
Output Voltage1-Max:
5.1 V
Output Voltage1-Min:
4.9 V
Output Voltage1-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
SOF
Package Equivalence Code:
TO-243
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR, 13 INCH
Peak Reflow Temperature (Cel):
260
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.6 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
FLAT
Terminal Pitch:
1.5 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
2.45 mm

AP7381-50Y-13 Frequently Asked Questions (FAQs)

The AP7381-50Y-13 can handle a maximum input voltage of 30V, but it's recommended to operate within the specified input voltage range of 7V to 28V for optimal performance.
To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, as specified in the datasheet. Additionally, the input capacitor should be placed close to the VIN pin to minimize noise and ensure stable operation.
The AP7381-50Y-13 can provide a maximum output current of 500mA. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
The power dissipation of the AP7381-50Y-13 can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. It's essential to ensure that the device operates within the specified thermal limits to prevent overheating and ensure reliable operation.
The EN (Enable) pin is used to enable or disable the AP7381-50Y-13. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to turn the device on and off as needed.
