The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane, using thermal vias to connect the exposed pad to the ground plane, and keeping the thermal path as short as possible.
To ensure stability, it's essential to follow the recommended component values and layout guidelines, use a high-quality output capacitor with low ESR, and add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
Although the datasheet specifies a maximum input voltage of 28V, it's recommended to derate the input voltage to 25V or lower to ensure reliable operation and prevent damage to the device.
While the device is rated for operation up to 125°C, it's essential to consider the thermal derating curve and ensure that the junction temperature (TJ) does not exceed 125°C. This may require additional thermal management, such as heat sinks or thermal interfaces.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended design. Use an oscilloscope to monitor the output voltage and current waveforms, and consider using a thermal camera to identify hotspots.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP7384-28SA-7 Overview

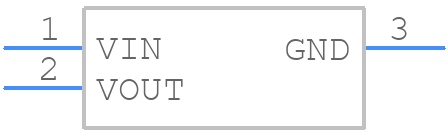

Use the download button to access the AP7384-28SA-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP738,
or try a keyword search, such as Linear Regulator ICs
