AP8801SG-13 - Diodes Incorporated

Description: DiodesZetex, AP8801SG-13 DC-DC Converter Dual 500mA Adjustable, -0.3 to 50 V 8-Pin, SOIC

Download AP8801SG-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

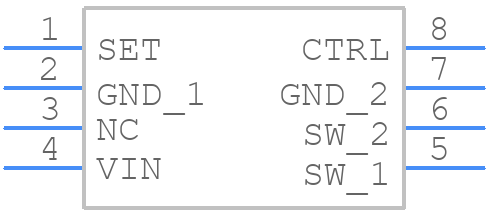

AP8801SG-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP8801SG-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
AP8801SG-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-8
click to zoom

AP8801SG-13 Details

  • Manufacturer Part Number:

    AP8801SG-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    48 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AP8801SG-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AP8801SG-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and ensures reliable operation.
  • To ensure stable output voltage regulation, make sure to decouple the input and output with suitable capacitors, and use a stable input voltage source. Additionally, ensure the output capacitor is within the recommended range (10uF to 100uF) and has a low ESR.
  • The AP8801SG-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress.
  • While the AP8801SG-13 is a high-quality device, it's essential to consult with Diodes Incorporated or a qualified representative to determine its suitability for high-reliability or automotive applications, as additional testing and validation may be required.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. This helps to filter out input noise and ensures stable operation.
