A good thermal design should include a solid ground plane, thermal vias under the IC, and a large copper area for heat dissipation. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design.
To ensure stability, follow the datasheet's recommended component values and PCB layout. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended. Also, keep the feedback loop as short as possible and avoid using long wires or traces.
The AP8802FNG-7 is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to derate the device by 10-15°C to ensure a safe operating margin. This means the maximum ambient temperature for reliable operation would be around 70-75°C.
The AP8802FNG-7 is a surface-mount device, and its reliability in high-vibration environments depends on the PCB design and assembly quality. To ensure reliability, use a robust PCB design, secure the device with a suitable adhesive, and follow the manufacturer's assembly guidelines.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for overheating, short circuits, or component failures. Use an oscilloscope to analyze the output waveform and identify any anomalies. Consult the datasheet and application notes for troubleshooting guidelines and common failure modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP8802FNG-7 Overview

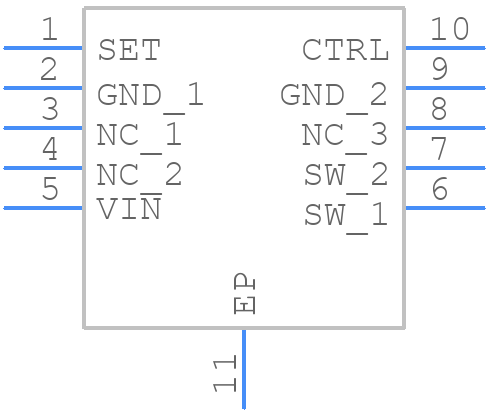

Use the download button to access the AP8802FNG-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP880,
or try a keyword search, such as Switching Regulator or Controllers
