APAKN1304-C2G-T - ABRACON

Description: 1.575GHz, 1.602GHz Galileo, GLONASS, GNSS, GPS Ceramic Patch RF Antenna - 2.4dBi, 2.6dBi Solder Surface Mount

Download APAKN1304-C2G-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

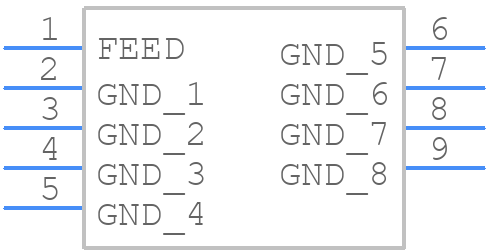

Symbol
APAKN1304-C2G-T - ABRACON - PCB symbol
click to zoom

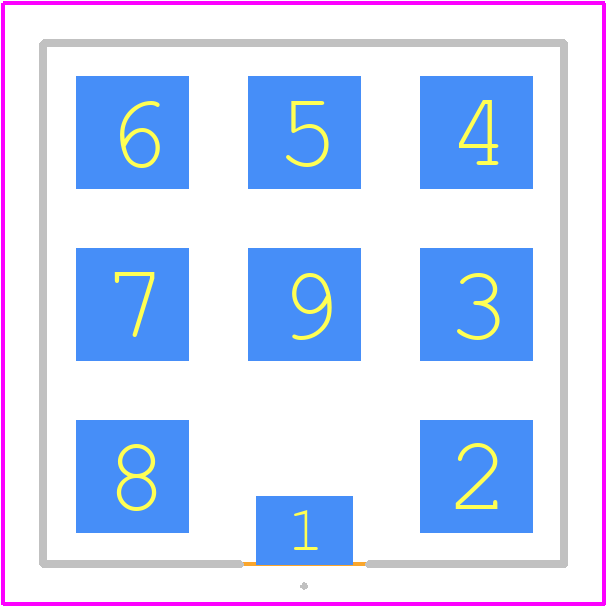

PCB Footprints
APAKN1304-C2G-T - ABRACON PCB footprint - Other - Other - APAKN1304-C2G-T-4
click to zoom
3D Models
APAKN1304-C2G-T - ABRACON - 3D model - Other - APAKN1304-C2G-T-4
click to zoom

APAKN1304-C2G-T Details

  • Manufacturer Part Number:

    APAKN1304-C2G-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-05-24

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7

  • Application:

    GALILEO/GLONASS/GNSS/GPS/IOT

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Omnidirectional:

    NO

  • Package Body Material:

    CERAMIC

  • Polarization:

    RHCP

  • RF/Microwave Device Type:

    GPS ANTENNA

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

APAKN1304-C2G-T Frequently Asked Questions (FAQs)

  • Abracon recommends a land pattern with a pad size of 1.3mm x 0.8mm and a spacing of 0.5mm between pads to ensure reliable soldering and minimize thermal resistance.
  • Yes, APAKN1304-C2G-T is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to consider the derating curves and thermal management to ensure reliable operation.
  • The typical lead time for APAKN1304-C2G-T is 8-12 weeks, but it may vary depending on the quantity and availability. It's recommended to check with Abracon or authorized distributors for the most up-to-date lead time information.
  • Yes, APAKN1304-C2G-T is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
  • Abracon recommends storing APAKN1304-C2G-T in a dry, cool place with a temperature range of 20°C to 30°C and humidity below 60%. This helps to prevent moisture absorption and ensures the component's reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

APAKN1304-C2G-T Overview

Use the download button to access the APAKN1304-C2G-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APAKN, or try a keyword search, such as RF/Microwave Antennas
