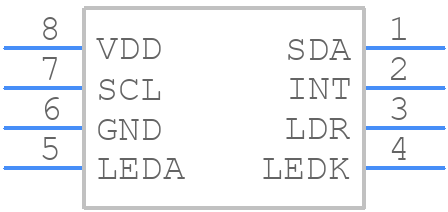

APDS-9950 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
APDS-9950 - Avago Technologies PCB footprint - Other - Other - APDS-9950-2
click to zoom
3D Models
APDS-9950 - Avago Technologies - 3D model - Other - APDS-9950-2
click to zoom

APDS-9950 Details

  • Manufacturer Part Number:

    APDS-9950

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Accuracy-Max (%):

    3%

  • Body Breadth:

    2.36 mm

  • Body Height:

    1.35 mm

  • Body Length or Diameter:

    3.94 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    0.33 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,PHOTOELECTRIC,REFLECTIVE

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

APDS-9950 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the APDS-9950 involves placing the sensor near the edge of the PCB, with the photodiode facing the light source. A ground plane underneath the sensor is recommended to reduce noise and improve accuracy.
  • Calibration of the APDS-9950 involves adjusting the gain and offset values to match the specific application requirements. This can be done through software or using external resistors to adjust the gain and offset.
  • The APDS-9950 can handle ambient light intensities up to 100,000 lux, making it suitable for use in a wide range of applications, from indoor to outdoor environments.
  • Yes, the APDS-9950 has a high sensitivity and can detect light levels as low as 0.01 lux, making it suitable for use in low-light environments such as dark rooms or at night.
  • The APDS-9950 has a built-in IR filter that blocks IR light, allowing it to accurately measure visible light while rejecting IR interference.
