APE2F-RA - KNITTER-SWITCH

Description: Pushbutton Switch DPDT Standard Through Hole, Right Angle

Download APE2F-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

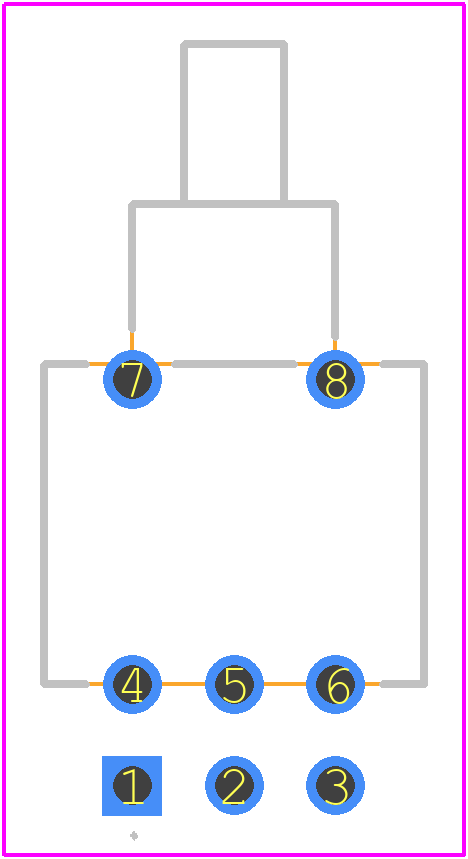

APE2F-RA - KNITTER-SWITCH PCB footprint - Other - Other - APE2F-RA-1
click to zoom

APE2F-RA Details

  • Manufacturer Part Number:

    APE2F-RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Direct Group:

    SH1001010523140101010025030303079

  • Similar Group:

    SH1001010523140101010

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    knitter-switch

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    5.0038 mm

  • Body Height:

    10.8458 mm

  • Body Length or Diameter:

    9.4996 mm

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    DPDT

  • Switch Type:

    PUSHBUTTON SWITCH
