The recommended operating voltage range for APS12808L-3OBM-BA is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.3V to 4.0V for a short duration, but prolonged operation outside the recommended range may affect its performance and lifespan.
It's crucial to follow a controlled power-up and power-down sequence to prevent damage to the device. The recommended sequence is to power up VCC first, followed by VIO, and then apply the clock signal. During power-down, the sequence should be reversed. Additionally, ensure that the input signals are stable and within the recommended voltage range before applying the clock signal.
The APS12808L-3OBM-BA supports a maximum clock frequency of 133 MHz. However, the actual clock frequency may vary depending on the system design, capacitive loading, and other factors. It's essential to consult the datasheet and perform thorough testing to ensure the device operates within the specified frequency range.
The APS12808L-3OBM-BA has an active-low reset pin (RST). To implement the reset function, pull the RST pin low for a minimum of 2 clock cycles to reset the device. After releasing the reset signal, the device will return to its normal operating state. Ensure that the reset signal is synchronized with the clock signal to prevent any issues.
The maximum current consumption of APS12808L-3OBM-BA varies depending on the operating frequency and voltage. According to the datasheet, the typical current consumption is around 120 mA at 133 MHz and 3.3V. However, the maximum current consumption can reach up to 150 mA. It's essential to consult the datasheet and perform thorough testing to ensure the device operates within the specified current range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
APS12808L-3OBM-BA Overview

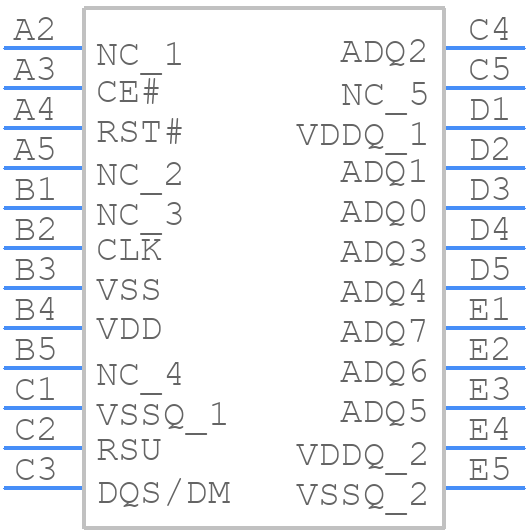

Use the download button to access the APS12808L-3OBM-BA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APS12,
or try a keyword search, such as SRAMs
