The recommended operating voltage range is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.3V to 4.0V for a short duration, but prolonged operation outside the recommended range may affect its performance and lifespan.
To ensure proper initialization, it's recommended to follow the power-up sequence outlined in the datasheet. Specifically, the VCC pin should be powered up before the VIO pin, and the device should be held in reset (RST# pin low) for at least 10ms after power-up. This allows the internal voltage regulators to stabilize and the device to initialize correctly.
The APS12808L-3OBMX-BA supports a maximum clock frequency of 133MHz. However, it's essential to note that the device's performance and power consumption will vary depending on the clock frequency, and the user should consult the datasheet for specific guidelines on clock frequency and power consumption.
The APS12808L-3OBMX-BA provides various error detection and correction mechanisms, such as ECC and parity checking. In the event of an error, the device will assert the ERROR# pin. The user should implement error handling mechanisms, such as retrying the operation or resetting the device, to ensure reliable operation. Consult the datasheet for specific guidelines on error handling and exception management.
The typical power consumption of the APS12808L-3OBMX-BA varies depending on the operating frequency, voltage, and mode of operation. According to the datasheet, the typical active power consumption is around 250mW at 133MHz and 3.3V. However, the user should consult the datasheet for specific power consumption values and guidelines on power management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
APS12808L-3OBMX-BA Overview

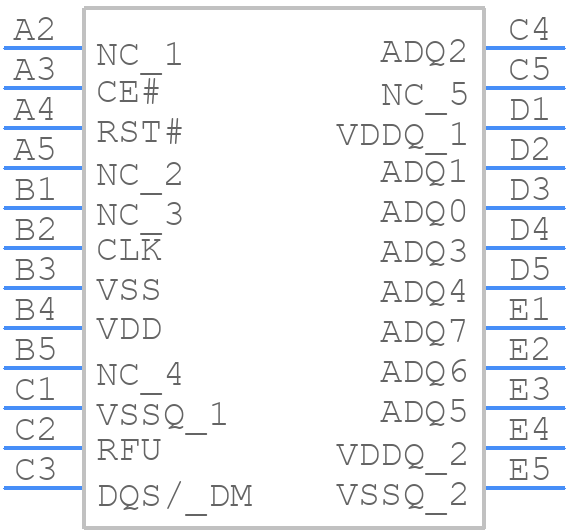

Use the download button to access the APS12808L-3OBMX-BA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APS12,
or try a keyword search, such as SRAMs
