FREE WHEELING DIODE, HIGH RELIABILITY, LOW NOISE, SNUBBER DIODE
Application:
ULTRA FAST SOFT RECOVERY
Case Connection:
ISOLATED
Configuration:
SEPARATE, 2 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
RECTIFIER DIODE
Forward Voltage-Max (VF):
2.5 V
JESD-30 Code:
R-PUFM-X4
JESD-609 Code:
e1
Non-rep Pk Forward Current-Max:
540 A
Number of Elements:
2
Number of Phases:
1
Number of Terminals:
4
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Output Current-Max:
53 A
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
1200 V
Reverse Current-Max:
250 µA
Reverse Recovery Time-Max:
0.4 µs
Reverse Test Voltage:
1200 V
Surface Mount:
NO
Terminal Finish:
TIN SILVER COPPER
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
APT2X60D120J Frequently Asked Questions (FAQs)
Microsemi recommends following the guidelines in the 'APT2X60D120J Thermal Management and PCB Layout' application note, which provides detailed information on thermal pad connections, heat sink attachment, and PCB layout considerations to ensure optimal performance and reliability.
To ensure EMC and EMI compliance, follow the guidelines in the 'APT2X60D120J Electromagnetic Compatibility' application note, which provides recommendations on PCB layout, component selection, and shielding techniques to minimize electromagnetic radiation and susceptibility.
Microsemi recommends using a combination of common-mode chokes, differential-mode chokes, and capacitors to filter the input and output signals. The 'APT2X60D120J EMI Filtering' application note provides detailed guidance on filter design and component selection.
Microsemi recommends following a systematic troubleshooting approach, starting with a review of the power supply design, PCB layout, and component selection. The 'APT2X60D120J Troubleshooting Guide' provides a step-by-step procedure for identifying and resolving common issues.
The APT2X60D120J is designed to meet high-reliability standards, with a typical lifespan of 10-15 years or more, depending on operating conditions. To ensure maximum reliability, follow the recommended operating conditions, storage, and handling guidelines, and implement a robust design with adequate thermal management, EMI protection, and fault tolerance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
APT2X60D120J Overview

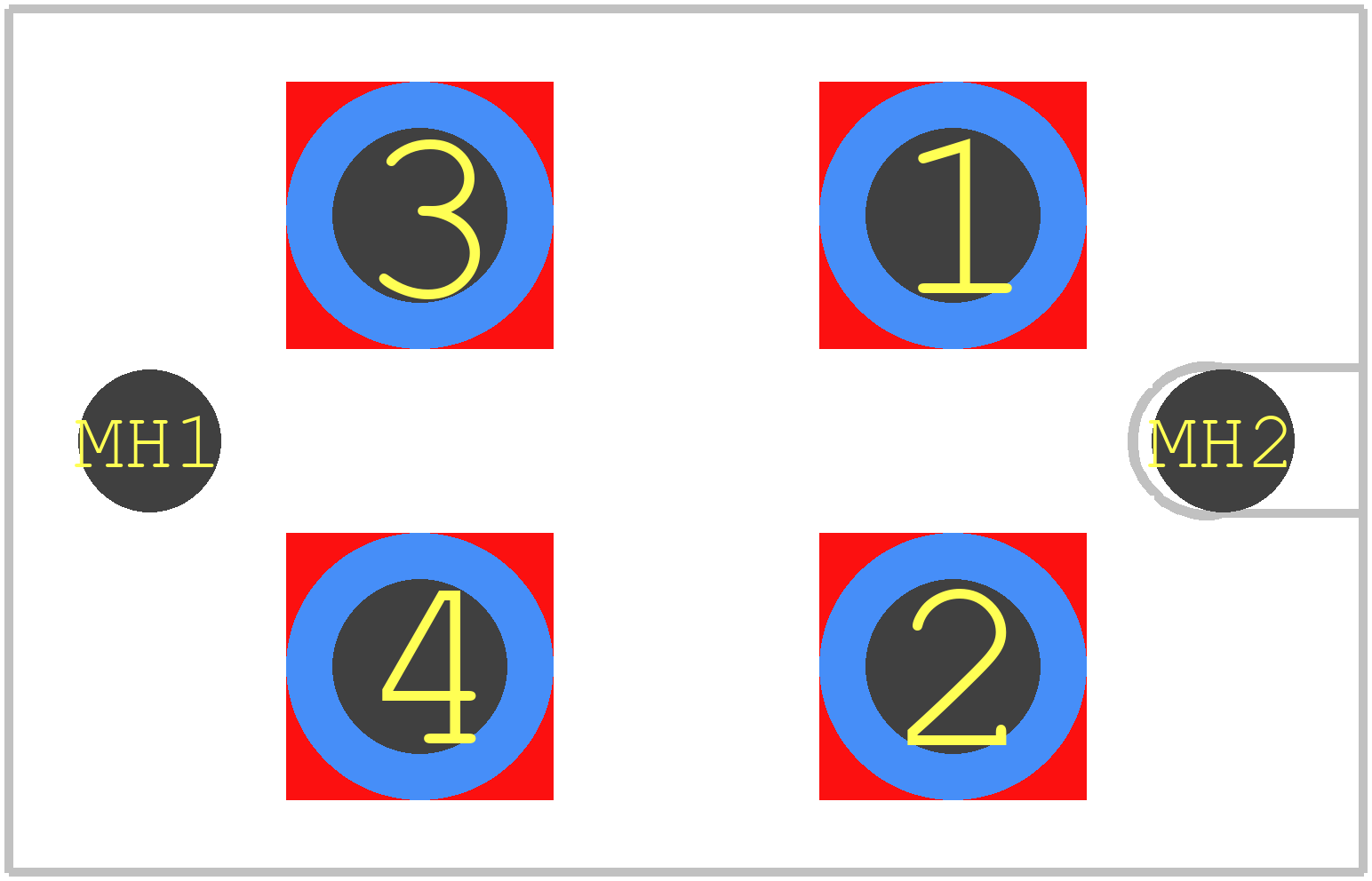

Use the download button to access the APT2X60D120J schematic symbol and PCB footprint.
