APT60D60BG - Microsemi Corporation

APT60D60BG Details

• Manufacturer Part Number:

  APT60D60BG

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

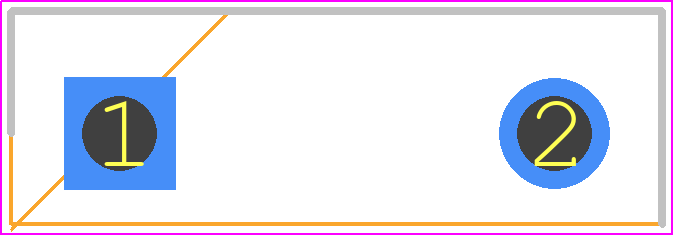

• Part Package Code:

  TO-247

• Package Description:

  ROHS COMPLIANT PACKAGE-2

• Pin Count:

  3

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Microsemi Corporation (now Microchip)

• Additional Feature:

  FREE WHEELING DIODE, SNUBBER DIODE, LOW LEAKAGE CURRENT, LOW NOISE, HIGH RELIABILITY

• Application:

  ULTRA FAST SOFT RECOVERY

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.8 V

• JEDEC-95 Code:

  TO-247

• JESD-30 Code:

  R-PSFM-T2

• JESD-609 Code:

  e1

• Non-rep Pk Forward Current-Max:

  600 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  60 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  600 V

• Reverse Recovery Time-Max:

  0.04 µs

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE
