APW7142KI-TRL - AMERICAN POWER DEVICES

Description: General Description · Wide Input Voltage from 4.3V to 14V · Output Current up to 3A · Adjustable Output Voltage from 0.8V to VIN - ±2% System Accuracy · 70mW Integrated Power MOSFETs · High Efficiency up to 95% - Automatic Skip/PWM Mode Operation · Current-Mode Operation - Easy Feedback Compensation - Stable with Low ESR Output Capacitors - Fast Load/Line Transient Response · Power-On-Reset Monitoring · Fixed 500kHz Switching Frequency in PWM Mode · Built-In Digital Soft-Start and Soft-Stop ·

Download APW7142KI-TRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

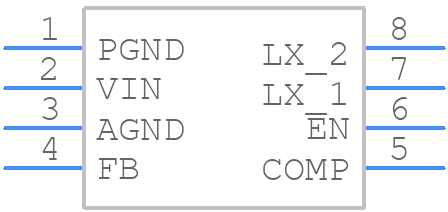

APW7142KI-TRL - AMERICAN POWER DEVICES - PCB symbol
