Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
Proper thermal management is crucial for the AQH0213AX. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias. Follow Panasonic's thermal design guidelines and consider using a thermal simulation tool to optimize your design.
Panasonic recommends following the J-STD-020D.1 standard for soldering conditions. The recommended temperature profile is: peak temperature 260°C, time above 217°C 30s, and time above 200°C 60s. Ensure proper soldering techniques and avoid overheating to prevent damage to the component.
To ensure reliability, follow proper handling, storage, and soldering procedures. Avoid exposing the component to excessive mechanical stress, moisture, or contamination. Implement a robust design with adequate margins, and consider using Panasonic's reliability simulation tools to optimize your design.
The AQH0213AX has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Latch-up protection is also integrated, but it's crucial to design your circuit to prevent latch-up conditions. Consult Panasonic's application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQH0213AX Overview

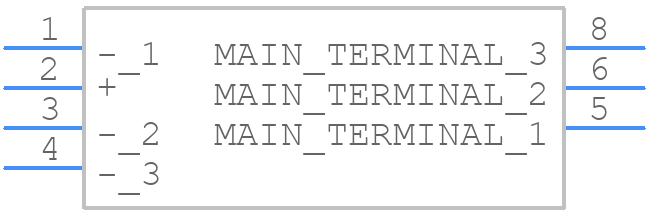

Use the download button to access the AQH0213AX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH02,
or try a keyword search, such as Solid State Relays
