AQH1213 - Panasonic

Description: Solid State Relays - PCB Mount 600MA 600VAC ZERO CROSS PCB

Download AQH1213 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

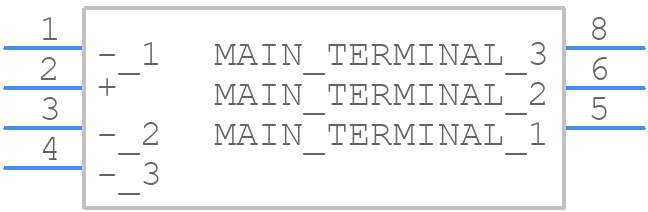

Symbol
AQH1213 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQH1213 - Panasonic PCB footprint - Other - Other - AQ-H (DIP7)
click to zoom
3D Models
AQH1213 - Panasonic - 3D model - Other - AQ-H (DIP7)
click to zoom

AQH1213 Details

  • Manufacturer Part Number:

    AQH1213

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    UL RECOGNIZED, WITH ZERO CROSS OVER CIRCUIT

  • Configuration:

    SINGLE

  • Control Current:

    0.015 A

  • Control Voltage:

    1.21 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    AC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    DIAC

  • Overall Height:

    3.4 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

AQH1213 Frequently Asked Questions (FAQs)

  • Store AQH1213 in a cool, dry place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid direct sunlight and moisture.
  • Handle AQH1213 with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the component's pins or leads.
  • Solder AQH1213 at a temperature of 250°C to 260°C for 2-3 seconds. Avoid exceeding 280°C or 5 seconds to prevent damage.
  • AQH1213 is designed for general-purpose use and may not be suitable for high-vibration environments. Consider using a vibration-resistant component or adding mechanical support for high-vibration applications.
  • Use a soft brush and a mild solvent like isopropyl alcohol or a commercial cleaning solution to remove flux residue. Avoid using harsh chemicals or abrasive materials that may damage the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQH1213 Overview

Use the download button to access the AQH1213 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH12, or try a keyword search, such as Solid State Relays
