Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
Proper thermal management is crucial for the AQH1223AX. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias. Follow Panasonic's thermal design guidelines and consider using a thermal simulation tool to optimize your design.
Panasonic recommends following the J-STD-020D standard for soldering the AQH1223AX. The recommended soldering conditions are: peak temperature of 260°C, soldering time of 10 seconds, and a temperature slope of 3°C/s. Ensure proper soldering techniques and equipment to prevent damage to the component.
The AQH1223AX is designed to operate in a specific temperature and humidity range. While it can tolerate some humidity and temperature variations, it's essential to follow Panasonic's guidelines and consider additional protection measures, such as conformal coating or potting, to ensure reliability in harsh environments.
To troubleshoot issues with the AQH1223AX, follow a systematic approach: 1) review the datasheet and application notes, 2) check the PCB design and layout, 3) verify the component's soldering and assembly, 4) use diagnostic tools, such as oscilloscopes or logic analyzers, and 5) consult with Panasonic's technical support or a qualified engineer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQH1223AX Overview

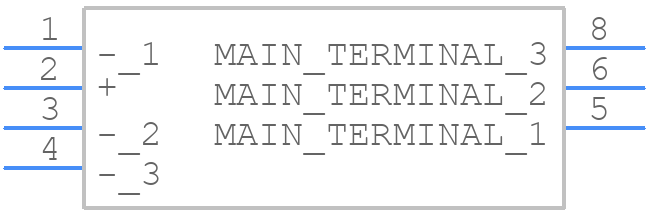

Use the download button to access the AQH1223AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH12,
or try a keyword search, such as Solid State Relays
