AQH1223AZ - Panasonic

Description: Solid State Relays - PCB Mount AC 600 V 0.6 A Non-Zero Cross

Download AQH1223AZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

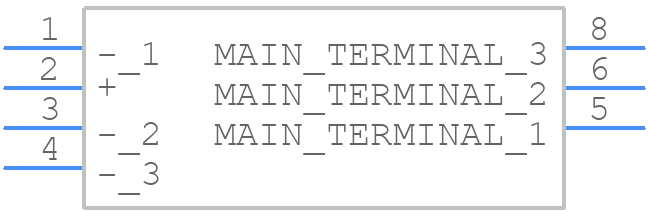

AQH1223AZ - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQH1223AZ - Panasonic PCB footprint - Other - Other - AQH_A
click to zoom
3D Models
AQH1223AZ - Panasonic - 3D model - Other - AQH_A
click to zoom

AQH1223AZ Details

  • Manufacturer Part Number:

    AQH1223AZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-8/7

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.015 A

  • Control Voltage:

    1.21 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    AC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    DIAC

  • Overall Height:

    3.4 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES
