AQH2213 - Panasonic

Description: Relay

Download AQH2213 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

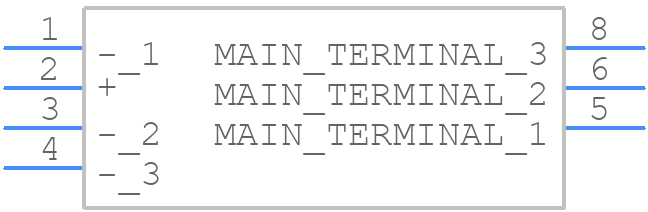

Symbol
AQH2213 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQH2213 - Panasonic PCB footprint - Other - Other - AQ-H (DIP7)
click to zoom
3D Models
AQH2213 - Panasonic - 3D model - Other - AQ-H (DIP7)
click to zoom

AQH2213 Details

  • Manufacturer Part Number:

    AQH2213

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED, WITH ZERO CROSS OVER CIRCUIT

  • Configuration:

    SINGLE

  • Control Current:

    0.015 A

  • Control Voltage:

    1.21 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    AC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    DIAC

  • Overall Height:

    3.4 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

AQH2213 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AQH2213 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce noise and electromagnetic interference.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and add a 100nF capacitor between VCC and GND for high-frequency decoupling. Also, use a 1uF capacitor between VIN and GND for input decoupling.
  • The AQH2213 can operate within a temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • To protect the AQH2213 from electrostatic discharge (ESD), use ESD protection devices such as TVS diodes or ESD arrays on the input lines, and ensure that the PCB design includes ESD protection features such as guard rings and ESD-safe handling procedures.
  • The recommended soldering temperature for the AQH2213 is 260°C (peak temperature), and the soldering time should not exceed 10 seconds. It's also recommended to use a soldering iron with a temperature control and a solder with a melting point below 220°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQH2213 Overview

Use the download button to access the AQH2213 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH22, or try a keyword search, such as Solid State Relays
