AQS221FR2S - Panasonic

Description: RF C✕R10/GU High capacity Voltage-sensitive Type, SOP16, 40V/60V load voltage

Download AQS221FR2S Model

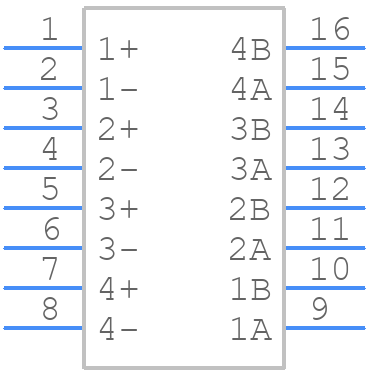

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQS221FR2S - Panasonic PCB footprint - Small Outline Packages - Small Outline Packages - SOP16
click to zoom
3D Models
AQS221FR2S - Panasonic  - 3D model - Small Outline Packages - SOP16
click to zoom

AQS221FR2S Details

  • Manufacturer Part Number:

    AQS221FR2S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-16

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 4 ELEMENTS WITH BUILT-IN RESISTOR

  • Isolation Voltage-Max:

    500 V

  • Number of Elements:

    4

  • On-State Current-Max:

    0.16 A

  • On-state Resistance-Max:

    1.25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TUBE

AQS221FR2S Frequently Asked Questions (FAQs)

  • A good PCB layout for the AQS221FR2S involves keeping the sensor away from high-frequency components, using a solid ground plane, and minimizing the length of the sensor's output traces to reduce noise and interference.
  • Calibration of the AQS221FR2S typically involves exposing the sensor to a known gas concentration, taking measurements, and then adjusting the sensor's output using a calibration curve or formula provided by Panasonic or a third-party calibration service.
  • The recommended operating temperature range for the AQS221FR2S is -20°C to 50°C, but it can operate up to 85°C with reduced accuracy and lifespan.
  • The AQS221FR2S's analog output signal should be handled using a high-impedance input amplifier or ADC with a high common-mode rejection ratio to minimize noise and interference, and to ensure accurate signal conditioning.
  • The typical response time of the AQS221FR2S is around 10-30 seconds, depending on the gas type and concentration, as well as the sensor's operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQS221FR2S Overview

Use the download button to access the AQS221FR2S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQS22, or try a keyword search, such as Solid State Relays
