AQS221FR2SZ - Panasonic

Description: Solid State Relays - PCB Mount RELAY PHOTOMOS 40V .16A

Download AQS221FR2SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

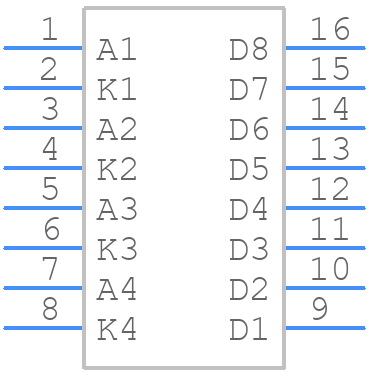

Symbol
AQS221FR2SZ - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQS221FR2SZ - Panasonic PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin SOP
click to zoom
3D Models
AQS221FR2SZ - Panasonic - 3D model - Small Outline Packages - 16-Pin SOP
click to zoom

AQS221FR2SZ Details

  • Manufacturer Part Number:

    AQS221FR2SZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-16

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 4 ELEMENTS WITH BUILT-IN RESISTOR

  • Isolation Voltage-Max:

    500 V

  • Number of Elements:

    4

  • On-State Current-Max:

    0.16 A

  • On-state Resistance-Max:

    1.25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TR

AQS221FR2SZ Frequently Asked Questions (FAQs)

  • Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the analog and digital sections. The layout should also minimize noise coupling between the analog and digital sections.
  • The thermal pad should be connected to a solid ground plane on the PCB to ensure good thermal dissipation. A thermal via or a thermal pad on the PCB is recommended to connect to the thermal pad on the package.
  • Although the datasheet specifies a maximum input voltage of VCC + 0.3V, it is recommended to keep the input voltage within the range of 0V to VCC - 0.5V to ensure accurate measurements and prevent damage to the device.
  • Calibration is not required for the AQS221FR2SZ, as it is a pre-calibrated device. However, it is recommended to perform a system-level calibration to account for any variations in the PCB layout, components, and environmental conditions.
  • The recommended clock frequency for the I2C interface is 100 kHz to 400 kHz. However, the device can operate up to 1 MHz clock frequency, but with reduced noise immunity.
