AQS221N2SX - Panasonic

Description: Relay SSR 50mA 1.5V DC-IN 0.06A 40V AC/DC-OUT 16-Pin SOP T/R

Download AQS221N2SX Model

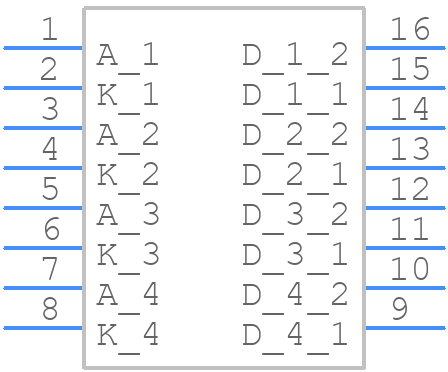

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQS221N2SX - Panasonic PCB footprint - Small Outline Packages - Small Outline Packages - SOP16
click to zoom
3D Models
AQS221N2SX - Panasonic  - 3D model - Small Outline Packages - SOP16
click to zoom

AQS221N2SX Details

  • Manufacturer Part Number:

    AQS221N2SX

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    500 V

  • Number of Elements:

    4

  • On-State Current-Max:

    0.06 A

  • On-state Resistance-Max:

    12.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TR

AQS221N2SX Frequently Asked Questions (FAQs)

  • A good PCB layout for the AQS221N2SX involves keeping the sensor away from high-frequency components, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration of the AQS221N2SX involves exposing the sensor to a known gas concentration and adjusting the output voltage accordingly. A calibration curve can be generated by plotting the output voltage against the gas concentration. It is recommended to calibrate the sensor in the actual operating environment.
  • The recommended operating temperature range for the AQS221N2SX is -20°C to 50°C. Operating the sensor outside this range may affect its accuracy and reliability.
  • The output voltage of the AQS221N2SX is analog, so it needs to be converted to digital using an ADC (Analog-to-Digital Converter) in the microcontroller. The ADC resolution and sampling rate should be chosen based on the required accuracy and response time.
  • Yes, the AQS221N2SX is designed to operate in humid environments. However, it's recommended to take precautions to prevent water from entering the sensor package. A conformal coating or potting compound can be used to protect the sensor from moisture.
