AQS221R2S - Panasonic

Description: Relay SSR 50mA 1.5V DC-IN 0.16A 40V AC/DC-OUT 16-Pin SOP Tube

Download AQS221R2S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

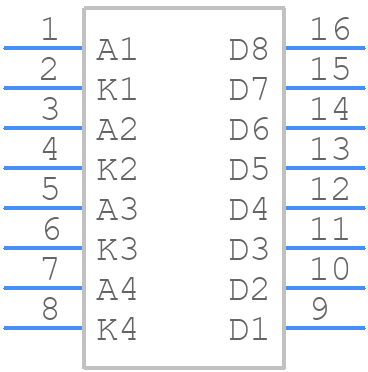

AQS221R2S - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQS221R2S - Panasonic PCB footprint - Small Outline Packages - Small Outline Packages - SOP16
click to zoom
3D Models
AQS221R2S - Panasonic - 3D model - Small Outline Packages - SOP16
click to zoom

AQS221R2S Details

  • Manufacturer Part Number:

    AQS221R2S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.005 A

  • Isolation Voltage-Max:

    500 V

  • Number of Elements:

    4

  • On-State Current-Max:

    0.16 A

  • On-state Resistance-Max:

    1.25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TUBE

AQS221R2S Frequently Asked Questions (FAQs)

  • A good PCB layout for the AQS221R2S involves keeping the sensor away from high-frequency components, using a solid ground plane, and minimizing the length of the analog signal traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the AQS221R2S involves exposing the sensor to a known gas concentration and adjusting the output voltage accordingly. A calibration curve can be generated by plotting the output voltage against the gas concentration. It is recommended to calibrate the sensor in the actual operating environment.
  • The recommended operating temperature range for the AQS221R2S is -20°C to 50°C. Operating the sensor outside this range may affect its accuracy and reliability.
  • The output signal from the AQS221R2S is an analog voltage that varies with the gas concentration. The signal should be amplified and filtered to remove noise, and then converted to a digital signal using an ADC. The digital signal can then be processed using a microcontroller or other digital signal processing unit.
  • The response time of the AQS221R2S is typically around 10-30 seconds, depending on the gas concentration and the operating conditions. This means that the sensor takes around 10-30 seconds to respond to changes in the gas concentration.
