AQS221R2SZ - Panasonic

Description: Solid State Relays - PCB Mount PhotoMOS RF SOP

Download AQS221R2SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

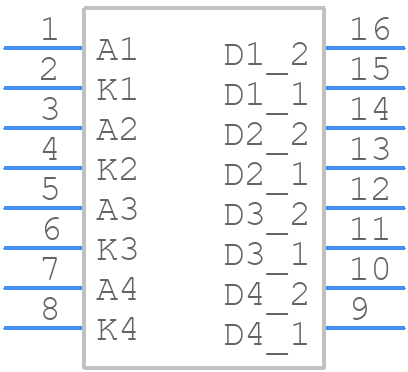

AQS221R2SZ - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQS221R2SZ - Panasonic PCB footprint - Small Outline Packages - Small Outline Packages - SOP16
click to zoom
3D Models
AQS221R2SZ - Panasonic - 3D model - Small Outline Packages - SOP16
click to zoom

AQS221R2SZ Details

  • Manufacturer Part Number:

    AQS221R2SZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.005 A

  • Isolation Voltage-Max:

    500 V

  • Number of Elements:

    4

  • On-State Current-Max:

    0.16 A

  • On-state Resistance-Max:

    1.25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TR
