AQS225R2SX - Panasonic

Description: Solid State Relays - PCB Mount AC/DC type 80V 70 mA SOP Form A Norm-Open

Download AQS225R2SX Model

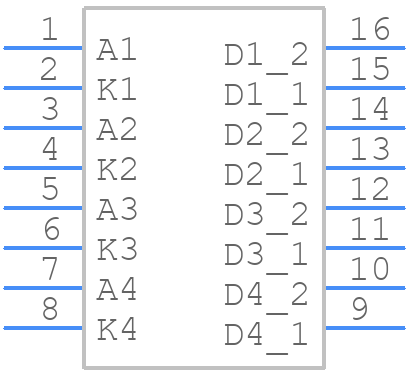

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQS225R2SX - Panasonic PCB footprint - Small Outline Packages - Small Outline Packages - AQS225R2S
click to zoom
3D Models
AQS225R2SX - Panasonic  - 3D model - Small Outline Packages - AQS225R2S
click to zoom

AQS225R2SX Details

  • Manufacturer Part Number:

    AQS225R2SX

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    1500 V

  • Number of Elements:

    4

  • On-State Current-Max:

    0.07 A

  • On-state Resistance-Max:

    15 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TR
